Electrodeshape is singular source within a mesh entity (boundary or cell) More...
Inheritance diagram for GIMLI::ElectrodeShapeEntity:

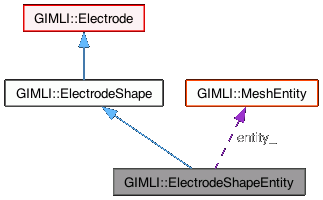

Collaboration diagram for GIMLI::ElectrodeShapeEntity:
Public Member Functions | |
| ElectrodeShapeEntity (MeshEntity &entity, const RVector3 &pos) | |
| void | setEntity (MeshEntity &entity) |
| MeshEntity * | entity () const |
| virtual std::vector< MeshEntity * > | entities () const |
| virtual double | geomMeanCellAttributes () const |
| virtual double | pot (const RVector &sol) const |
| virtual void | assembleRHS (RVector &rhs, double value, uint matrixSize) const |
| virtual void | setSingValue (RVector &sol, double scale, double k) const |
| Public Member Functions inherited from GIMLI::ElectrodeShape | |
| ElectrodeShape (const RVector3 &pos) | |
| virtual double | domainSize () const |
| void | setMID (uint id) |
| virtual int | mID () const |
| Public Member Functions inherited from GIMLI::Electrode | |
| Electrode () | |
| Electrode (const RVector3 &pos, int id=-1) | |
| Electrode (double x, double y, double z) | |
| Electrode (const Electrode &el) | |
| Electrode & | operator= (const Electrode &el) |
| bool | operator== (const Electrode &e) const |
| void | setPos (const RVector3 &pos) |
| const RVector3 & | pos () const |
| Public Member Functions inherited from GIMLI::BaseEntity | |
| BaseEntity (const BaseEntity &ent) | |
| BaseEntity & | operator= (const BaseEntity &ent) |
| virtual uint | rtti () const |
| virtual bool | valid () const |
| virtual void | setValid (bool valid) |
| int | id () const |
| void | setId (int id) |
| void | setMarker (int marker) |
| int | marker () const |
| void | setTagged (bool tagged) |
| void | untag () |
| void | tag () |
| bool | tagged () const |
Protected Attributes | |
| MeshEntity * | entity_ |
| Protected Attributes inherited from GIMLI::ElectrodeShape | |
| double | size_ |
| size of the domain | |
| int | mID_ |
| Protected Attributes inherited from GIMLI::Electrode | |
| RVector3 | pos_ |
| Protected Attributes inherited from GIMLI::BaseEntity | |
| int | id_ |
| bool | valid_ |
| int | marker_ |
| bool | tagged_ |
Detailed Description
Electrodeshape is singular source within a mesh entity (boundary or cell)
Member Function Documentation
◆ assembleRHS()
|
virtual |
Default method
Reimplemented from GIMLI::ElectrodeShape.
References GIMLI::MeshEntity::ids(), GIMLI::MeshEntity::N(), GIMLI::Shape::rst(), and GIMLI::Vector< ValueType >::setVal().
◆ geomMeanCellAttributes()
|
virtual |
Default method
Reimplemented from GIMLI::ElectrodeShape.
References GIMLI::MeshEntity::parentType().
Referenced by setSingValue().
◆ pot()
|
virtual |
Collect the potential value corresponding to this nodes id
Reimplemented from GIMLI::ElectrodeShape.
References GIMLI::MeshEntity::pot().
◆ setSingValue()
|
virtual |
Default method
Reimplemented from GIMLI::ElectrodeShape.
References GIMLI::besselK0(), GIMLI::Pos::dist(), GIMLI::Pos::distance(), geomMeanCellAttributes(), GIMLI::BaseEntity::id(), and GIMLI::ElectrodeShape::mID().
